TC11 titanium alloy engine drums offer a balance of strength, lightweight performance, and temperature resistance, ideal for aerospace compressor and fan applications.

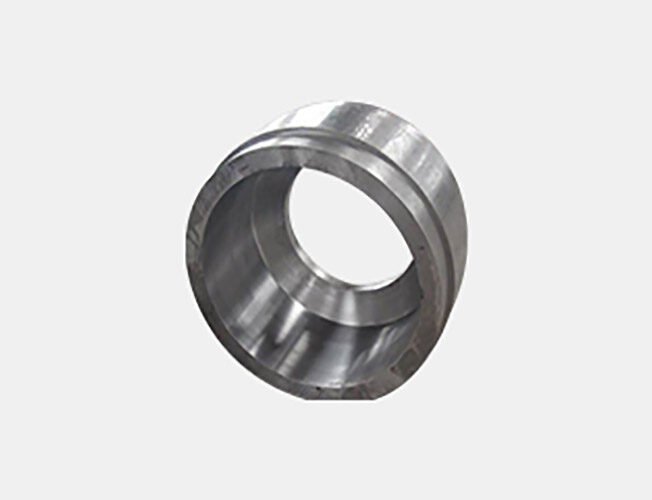

A TC11 engine drum is a critical rotating structural component used in aero engines, typically applied in fan and compressor sections. It connects multiple stages of disks into a unified rotor structure and plays a key role in maintaining strength, stiffness, and dynamic stability during high-speed operation.
As part of the α+β titanium alloy family, TC11 is specifically developed for aero engine components that require a balance between weight, strength, and elevated temperature performance.
TC11 is a Chinese titanium alloy grade widely used in aerospace applications. It is comparable to alloys such as Russian BT9 (ВТ9) and similar compositions like Ti-6.5Al-3.5Mo-1.5Zr-0.3Si.
TC11 is specifically designed for engine components operating below 500°C, making it suitable for compressor and front-section structures.
For rotating components like engine drums, material selection is always a balance between weight, strength, stiffness, and temperature resistance.
Compared with traditional materials:
This reduction in weight is especially important for large rotating parts such as drums, which can reach several hundred millimeters to over one meter in size.
Lower weight directly reduces rotor inertia, improving engine responsiveness and efficiency.
TC11 maintains stable mechanical properties under medium-high temperatures (up to 500°C), making it suitable for compressor sections where both strength and thermal stability are required.
Compared with higher-temperature alloys, TC11 provides a practical balance between:
This makes it a reliable choice for complex rotating structures.
Due to its temperature limit and performance characteristics, TC11 is mainly used in the cold to medium-temperature sections of aero engines.
Located at the very front of the engine, the fan drum supports fan blades or blisks.
This area operates at relatively low temperatures, allowing titanium alloys to fully utilize their lightweight advantage.
Positioned between the fan and high-pressure compressor, the LPC drum connects multiple compressor stages into a single rotor assembly.
Titanium alloy drums are widely used in this section. For example, similar structures are commonly seen in mature engine platforms such as the CFM56 series.
In the front stages of the high-pressure compressor, temperatures are still within the working range of TC11.
In these positions, titanium drums can still be used to reduce weight while maintaining sufficient strength.
Producing titanium alloy engine drums requires strict control over both forging and machining processes.
At TIPTOP Forging, we focus on:
TC11 remains a practical and proven material for compressor drums due to:
For aerospace components such as engine drums, consistency and process control are essential.
If you are sourcing TC11 titanium alloy engine drums or evaluating manufacturing options, you can share your drawings or technical requirements with us.
We can support your project with practical manufacturing solutions and stable production capabilities.
